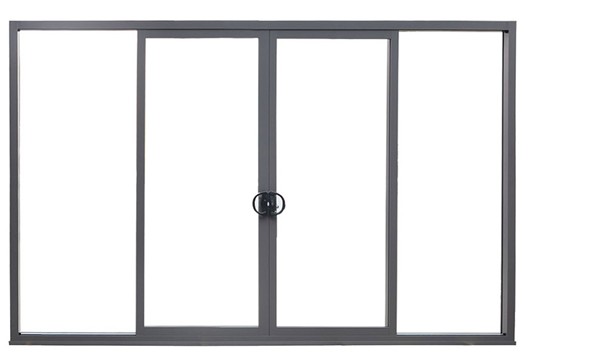

Sliding Doors

Get a Quote

Opening Style

Sliding

Thermal Insulation

U≤ 3.8W/㎡K

Acoustic Performance

≤ 45 DB

Air Tightness

≤ 0.4m³(㎡h)

Wind Load Resistance

≥ 2.8 KPa

Water Penetration

≥ 600Pa

Standard

AS2047, NFRC

Warranty

10 Years

Application

Residential & Commercial

Performance

Thermal Broken, Soundproof

technical systems

Sliding Doors technical systems

FL29474-R2

SP150 / 150T

COMMERCIAL

FRAME DATA

Visible Width (Outside) 50 mm

Profile Depth 150 mm

Depth of Glass Groove 28 mm

Glass Thickness 16–36 mm

WINDOW SPECIFICATION

Thermal Insulation U ≤ 1.6 W/m²K

Acoustic Performance ≤ 45 dB

Air Tightness 0.4

Wind Load Resistance ≥ 0.5 kPa

Water Penetration 900 Pa

Security Level —

SP65T Awning Casement Window

Super Series

FRAME DATA

Visible Width 30 mm

Profile Depth 65 mm

Depth of Glass Groove 27 mm

Glass Thickness 48 mm

WINDOW SPECIFICATION

Thermal Insulatio U ≤ 1.6 W/m²K

Acoustic Performance ≤ 45 dB

Air Tightness 0.4

Wind Load Resistance ≥ 0.5 kPa

Water Penetration 900 Pa

SP80T Awning Casement Window

Star Series

FRAME DATA

Visible Width 30 mm

Profile Depth 79 mm

Glass Groove Depth 27 mm

Glass Thickness 61 mm

WINDOW SPECIFICATION

Thermal Insulation U ≤ 1.4 W/m²K

Acoustic Performance ≤ 45 dB

Air Tightness 0.4

Wind Load Resistance ≥ 0.5 kPa

Water Penetration 900 Pa

Security Level —

SP100 Awning Window

Commercial

FRAME DATA

Visible Width 50 mm

Profile Depth 100 mm

Glass Groove 20 mm

Glass Thickness 12–31 mm

WINDOW SPECIFICATION

Thermal Insulation U ≤ 3.4 W/m²K

Acoustic Performance: ≤ 45 dB

Air Tightness 0.4

Wind Load Resistance ≥ 0.5 kPa

Water Penetration 900 Pa

Security Level —

SP65T Crank Window

FRAME DATA

Visible Width 30 mm

Profile Depth 65 mm

Glass Groove Dept 27 mm

Glass Thickness 48 mm

WINDOW SPECIFICATION

Thermal Insulation U ≤ 1.6 W/m²K

Acoustic Performance ≤ 45 dB

Air Tightness 0.4

Wind Load Resistance ≥ 0.5 kPa

Water Penetration 900 Pa

Security Level —

FL30902-R1

SPA100
Configuration 1

Hurricane Proof System

FRAME DATA

Aluminum Grade 6063-T6

Extrusion Wall Thickness 0.08"

Frame Size 4" × 2"

Frame Finish Powder Coated / Anodized

Visible Width —

Profile Depth —

Glass Groove Depth —

Glass Thickness —

WINDOW SPECIFICATION

Maximum Window Width 7'

Maximum Window Height 7'

Maximum Wind Load Capacity 50–75 PSF

U-Value 0.4–0.6

Acoustic Performance —

Air Tightness —

Water Penetration —

Security Level —

FL30922-R1

SPA100
Configuration 2

Hurricane Proof System

FRAME DATA

Aluminum Grade 6063-T6

Extrusion Wall Thickness 0.08"

Frame Size 4" × 2"

Frame Finish Powder Coated / Anodized

Visible Width —

Profile Depth —

Glass Groove Depth —

Glass Thickness —

WINDOW SPECIFICATION

Maximum Window Width Varied by height

Maximum Window Height 10'

Maximum Wind Load Capacity 60–90 PSF

U-Value 0.4–0.6 Btu/(ft²·h·°F)

Acoustic Performance —

Air Tightness —

Water Penetration —

Security Level —

Hurricane Proof System

SPA100
Configuration 3

FL30922-R1

FRAME DATA

Aluminum Grade 6063-T6

Extrusion Wall Thickness 0.08"

Frame Size 4" × 2"

Frame Finish Powder Coated / Anodized

Visible Width —

Profile Depth —

Glass Groove Depth —

Glass Thickness —

WINDOW SPECIFICATION

Maximum Window Width,Single Panel 5'

Maximum Window Height —

Maximum Wind Load Capacity —

U-Value —

Acoustic Performance —

Air Tightness —

Water Penetration: —

Security Level —

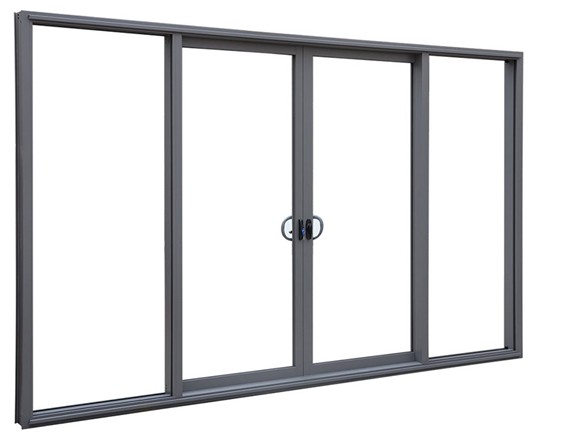

PRODUCT GALLERY

See Sliding Doors in detail

SPECIFICATIONS

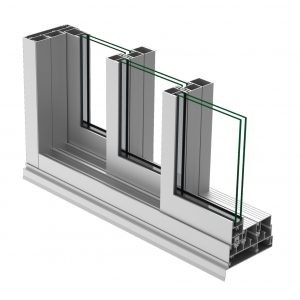

Sliding DoorsTechnical Details

Hi-Tech profile and reinforced material
Reinforced glass fiber thermal insulation bar with high loading capacity
Pressure extrusion for higher strength level
Coex wire seal to protect against moisture
Multi-point hardware lock system for weather sealing and burglarproofing
Truss structure design for increased structural strength
Tilt-turn system achieves the AAMA rating of CW-PG60
Corner locking key ensures the smooth surface joint and improves corner stability
Glass panel EPDM foam weather sealing strip used for better performance and easier maintenance than standard glue

MATERIALS & ENGINEERING

Material performance for demanding construction projects

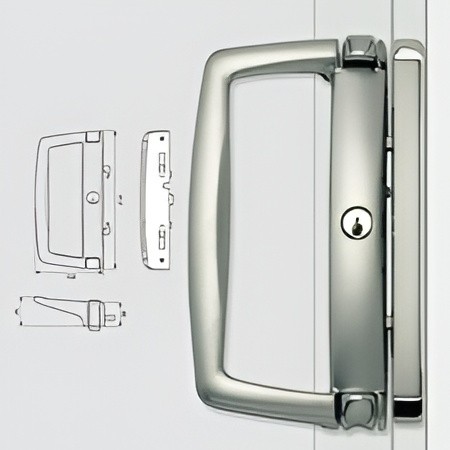

Hardwares&Accessories Options

Australia Doric hardware
America CMECH hardware
German Hoppe hardware
China top SMOO Hardware
German SIEGENIA hardware
China top KINLONG hardware
German ROTO hardware
German GEZE hardware
Superhouse always choose seriously hardwares&accessories for customers with 10 years warranty

Color & Coating Options

Silver grey powder coating, Silver anodising with INTERPON powder
Woodland grey(Satin), Ironstone(Stain), Shale Grey(Satin)
Ultra Silver(Gloss), Dune(Sain), Paperbark(Satin), Primrose(Gloss)
White Birch(Gloss), Surfmist(Matt), Architectural White(Satin)
Pearl White(Gloss), Silver Pearl Kinetic(Satin), Black(Satin)
Monument(Matt), Clear, Residential Bronze
Cedar, Mahogany, Honey Gum, Snow Gum
Select between factory-prefinished colors for fast delivery, or customized colors to better match your home

Standards & compliance checklist

AS2047
NFRC

Request a quote for your next project.

Detailed landed cost calculation
Estimated production timeline
Shipping and delivery options
Personalized quote for your project
Hurricane/impact compliance docs

Request a Quote
