Name: HF1265
Availability: InStock

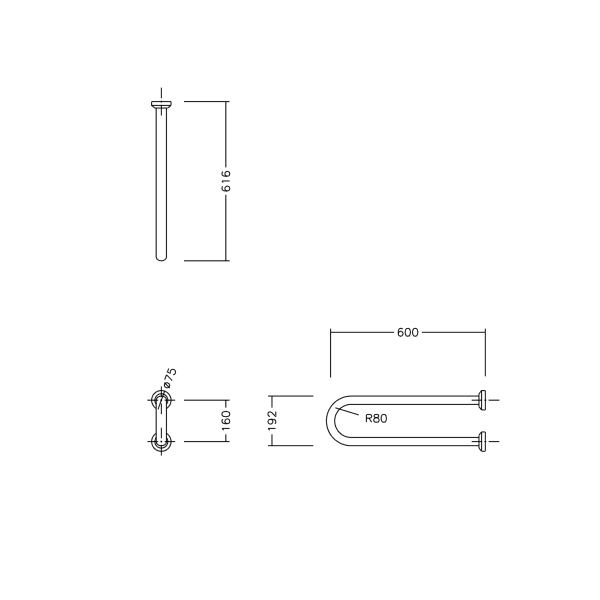

Dimensions

600 × 192 mm

Optional Color

White

Load Capacity

150 kg

Material

Antibacterial PVC resin
Aluminum alloy
304 stainless-steel mounting base

Quality / Certifications

Load test exceeds BL certification standard
Weather resistance complies with JIS A1415
Antibacterial performance complies with JIS R 1756:2013

Functions

40 × 32 mm oval tube provides a stable grip.
Inner tube and two resin layers are integrally overmolded for a stable structure.
Antibacterial agent is incorporated into the outer resin layer so antibacterial performance remains effective even with surface wear.
Two outer resin layers provide a comfortable touch.
Inner tube is 3 mm-thick aluminum alloy (actual thickness 3.2 mm).
One-piece design eliminates joint-loosening issues.
JIS certification covers load capacity, antibacterial performance and toxicity testing.
Four mounting holes.
