Concealed Automatic Flush Valve AF09230HG

Concealed Automatic Flush Valve AF09230HG
01

Specifications

Type

Concealed Automatic Flush Valve

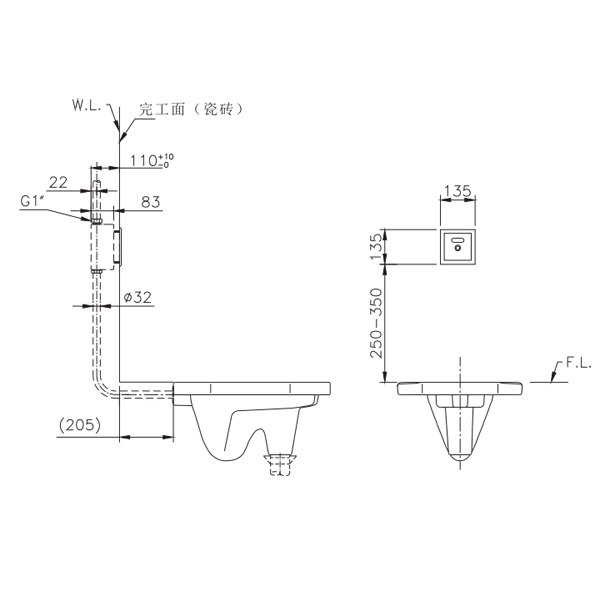

Dimensions

135 × 135 × 110 mm

Material
  • Brass Valve Body
  • PPA Valve Cover
  • Stainless-Steel Panel
Color

Brushed Stainless Steel

Accessories
  • Flush Panel
  • Valve Body
Rated Voltage

AC 220 V

Applicable Water Pressure

0.24–0.60 MPa

Warranty

2-Year Limited Warranty for the Complete Product

02

Functions

Brushed stainless-steel panel.
304 stainless-steel concealed box with all-brass valve body and PPA valve cover.
Clean, streamlined appearance.
Manual flush button.
Automatically recognizes short-use events within 2 minutes and uses a reduced flush mode for water saving.
03

Optional color

Brushed Stainless Steel
Concealed Automatic Flush Valve AF09230HG

Concealed Automatic Flush Valve AF09230HG

RANGE OVERVIEW
Product type Concealed automatic flush valve
Valve body Brass
Valve cover PPA
Panel Brushed stainless steel
Features Manual flush button, reduced flush mode for short use
