Wall-Hung Toilet C5509P+CF1694LAW

Wall-Hung Toilet C5509P+CF1694LAW
01

Specifications

Toilet Type

Wall-Hung Toilet

Flush Type

Washdown

Nominal Water Consumption

4.8 L (4.2 / 6.0 L)

Water Efficiency Level

Level 2

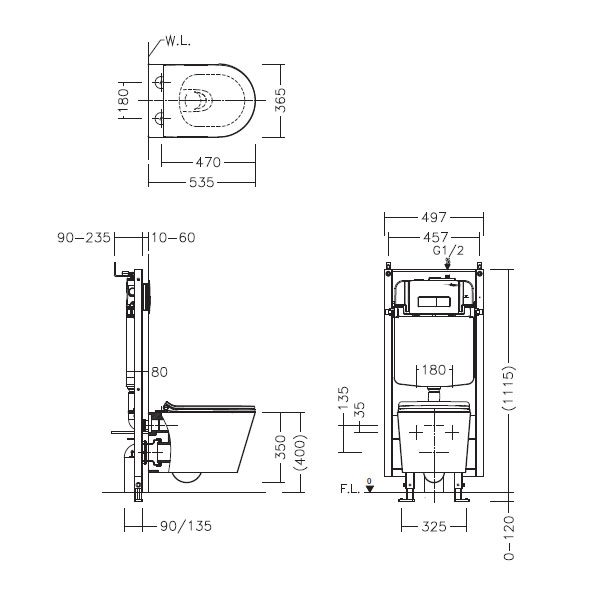

Dimensions

535 × 365 × 350 mm

Color

Powder White

Warranty
  • Ceramic: 10-year limited warranty
  • Tank fittings: 2-year limited warranty
  • Standard toilet seat: 1-year limited warranty
02

Product combination

C5509P Wall-Hung Toilet
CF8062 Concealed Cistern
MB4111 / MB4121 Flush Panel
CF1694LAW Slow-Close Toilet Seat
03

Functions

Functions
Concealed wall-hung configuration with a modern appearance
Rim-X Static Swirl technology
4.2 / 6.0 L flushing volume with Level 2 water efficiency
Glazed trapway for smoother waste discharge
Fully skirted waterway for easier cleaning
Ultra-thin metal quick-release slow-close toilet seat
9 mm ultra-thin flush panel
Concealed cistern surface wrapped with polystyrene to help prevent condensation on the wall at low temperatures
Wall-Hung Toilet C5509P+CF1694LAW

Wall-Hung Toilet C5509P+CF1694LAW

RANGE OVERVIEW
Product type Wall-hung toilet
Flushing Washdown
Water consumption 4.8 L (4.2 / 6.0 L)
Water efficiency Level 2
Combination C5509P Wall-Hung Toilet + CF8062 Concealed Cistern + MB4111 / MB4121 Flush Panel + CF1694LAW Slow-Close Toilet Seat
